FGG.00 LEMO Interchangeable Connector with bend relief, Cable Connector
LEMO B Series keyed, multipole and hybrid connectors are ideal for instrument applications across many markets. connector are compatible with corresponding FGG.00 LEMO connector and connector of other companies of the same type making it.
1, Description:
- Quick push-pull self-latching system
- anti-slip design on the surface of the housing
- sound prompting when self-latching .
-
High density installation saves space
-
multipole key options to avoid cross mating of similar connectors
-
keying system («G» key standard) for connector alignment
-
360° screening for full EMC shielding.
3, Construction and size:

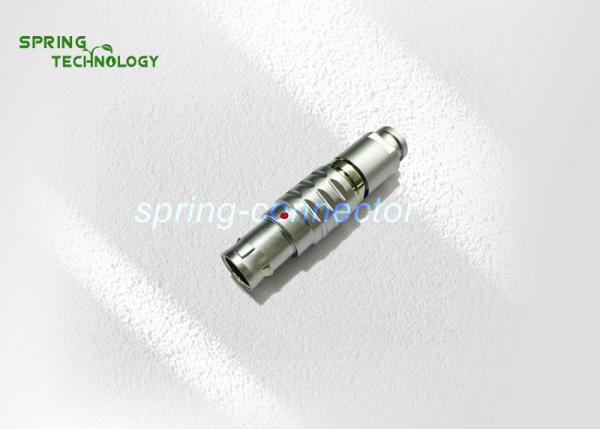

TGG/FGG.00 connector, Straight plug, key (G) or keys (A…M and R), cable collet and nut for fitting a bend relief
4, Technical specification:
| Pulling and inserting times | >5000. |
| Humidity | Maximum humidity up to 95% at a temperature of 60° |
| Temperature | -45°~+125° |
| Vibration | 10~20000HZ,15g |
| Mechanical shock | 100g·6ms |
| Salt spray corrosion test | >48h |
| Protection level | IP50 |
| Connector type | Plug, Male Pins |
| Number of positions | 2.3.4 pin |
| Termination | Solder, |
| Fastening type | Push-pull |
| Orientation | G,(A...M&R) |
| Shell material | Brass |
| Shell finish | Chrome |
| Shell color | Silver |
| Contact material | Brass |
| Contact finish-mating | Gold |
| Contact color | Gold |
| Insert material | PPS |
| Cable outer diameter range | 1.1mm~3.4mm |
5, Cross reference
| SPRING P/N | LEMO P/N | Definition |
| TGG.00B.30*.CLAD**Z | FGG.00.30*.CLAD**Z | TG Plug with key (G), Shell Size 00, 2,3,4 Pin Contacts, outer shell in chrome-plated brass, PPS insulator, male solder contacts, for 1.1~3.4mm diameter cable
and nut for fitting a bend relief |
Remark:
*: Number of Contacts
**: For cable diameter
6, Alignment Key
B series connector model part numbers are composed of three letters. TGG–The LAST LETTER indicates the key position and the contact type (male or female),So you also can choose TGA, TGB, TGC…Cross Reference FGA, FGB, FGC…
7, Choosing tips:
If you have purchased lemo connector or connector like this type and know the original model, please tell us. We will directly offer you our corresponding one.
If you don’t know much about the connector, please make choose according the following factors:
- the use of the environment, indoors or outdoors, waterproof or not;
- the panel hole size, to select the appropriate plug and socket of right dimension;
- the current-voltage and the realization of the function, to determine the cores;
- select the appropriate clamp diameter and sheath;
- according to the actual needs of different angles of the keys, to determine the keying (the standard keys as G)
