Push Pull Metal Electrical Connector Female Panel Mount Solder Socket
SPRING connectors have excellent compatibility with many leading supplier. are widely used in kinds of harsh environment and applications, like industrial control devices,medical equipment,measuring and inspecting equipment, audio & visual equipment and military,etc.
1, Brief introduction:
SPRING TECHNOLOGY offer a full range of rugged self-latching push pull connectors used in a variety of Equipment,SPRING connector mates with all push/pull plug connectors with the same,
2, Description:
3, Construction and size:
ZGG Fixed Socket, nuts fixed,Positioning pin(G) or Positioning pin(A...M or R) (fixed inside the chassis) .
4, Technical specification:
| Pulling and inserting times | >5000. |
| Humidity | Maximum humidity up to 95% at a temperature of 60° |
| Temperature | -45°~+125° |
| Vibration | 10~20000HZ,15g |
| Mechanical shock | 100g·6ms |
| Salt spray corrosion test | >48h |
| Protection level | IP50 |
| Connector type | Socket, female Pins |
| Number of positions | 2~26 pin |
| Termination | Solder, |
| Fastening type | Push-pull |
| Orientation | G,(A...M&R) |
| Shell material | Brass |
| Shell finish | Chrome |
| Shell color | Silver |
| Contact material | Brass |
| Contact finish-mating | Gold |
| Contact color | Gold |
| Insert material | PPS |
5, Why choose us
1. better quality at a reasonable price
2. large stock, short lead times, easy to buy.
3, We can provide OEM/ODM service and cable assembly solution.
4, Lower your cost, cheap cable assembly offer, at least save your 30%-50% cost (100% compatible and work well)
5, Our factory has 9 years experience and strong and professional research and development capabilities.Advanced development and management, comprehensive R&D testing and highly automatic production line make our products high reliability and high performance.
6, Choosing tips:
If you have purchased lemo connector or connector like this type and know the original model, please tell us. We will directly offer you our corresponding one.
If you don’t know much about the connector, please make choose according the following factors:
1 the use of the environment, indoors or outdoors, waterproof or not;
2 the panel hole size, to select the appropriate plug and socket of right dimension;
3 the current-voltage and the realization of the function, to determine the cores;
4 select the appropriate clamp diameter and sheath;
5 according to the actual needs of different angles of the keys, to determine the keying (the standard keys as G).

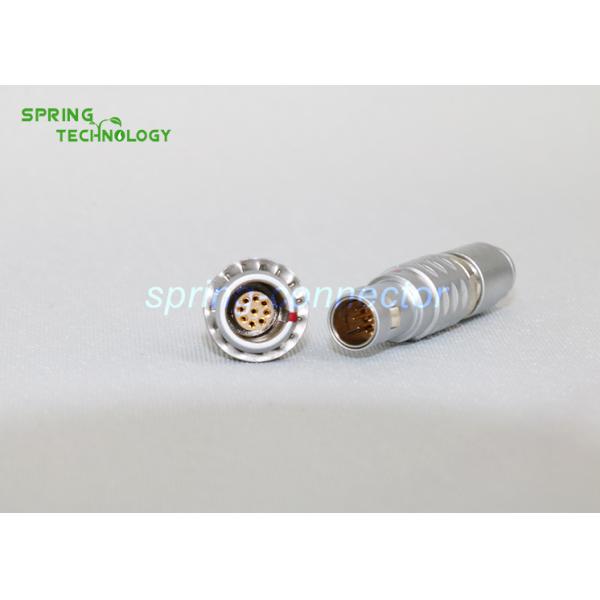

7, Product picture:
