SPRING ZGG 1B Push Pull Connector Analogues Of LEMOS EGG 1B 304 CLL Socket

XI'AN SPRING TECHNOLOGY CO,.LTD
Contact Now

SPRING ZGG 1B Push Pull Connector Analogues Of LEMOS EGG 1B 304 CLL Socket

  • 1
  • 2

Brand Name : SPRING

Model Number : ZGG 1B

Certification : CE,CB

Place of Origin : CHINA

MOQ : 5

Price : Negotiation

Payment Terms : Western Union, T/T, MoneyGram

Supply Ability : 100000pcs/month

Delivery Time : 5 work day

Packaging Details : Bag

Shell material : Brass

Pin material : Brass

Termination : Solder, crimping,printed board

Protection level : IP50

Contact Now

SPRING ZGG 1B Push Pull Connector Analogues Of LEMOS EGG 1B 304 CLL Socket

SPRING ZGG 1B 302/303/304/305/306/307/309 CLL socket can replace LEMOS EGG 1B 302/303/304/305/306/307/309 CLL Receptacle,and Standard G1 connector.

1, Brief introduction:

The push-pull locking connectors come in three varieties, plug, socket, and panel socket with a front-to-back mount,SPRING offers high reliable connection solutions with metal or plastic housing.

2, Description:

  • High density installation saves space.
  • Positioning pin system, G is standard positioning pin for connector alignment
  • cable connector, instrument connector, industrial connector
  • RED/Teradek Bond/ARRI Alexa camera cable, Timecode cable, RS cable, Sound Devices, Canon / Sony Camera power cable,SDI cable,USB cable,Video cable,CCD cable
  • Panel Mount Solder Socket

3, Construction and size:

ZGG Fixed Socket, nuts fixed,Positioning pin(G) or Positioning pin(A...M or R) (fixed inside the chassis) .

SPRING ZGG 1B Push Pull Connector Analogues Of LEMOS EGG 1B 304 CLL Socket
4, Technical specification:

Pulling and inserting times >5000.
Humidity Maximum humidity up to 95% at a temperature of 60°
Temperature -45°~+125°
Vibration 10~20000HZ,15g
Mechanical shock 100g·6ms
Salt spray corrosion test >48h
Protection level IP50
Connector type Socket, female Pins
Number of positions 2~10 pin
Termination Solder,
Fastening type Push-pull
Orientation G,(A...M&R)
Shell material Brass
Shell finish Chrome
Shell color Silver
Contact material Brass
Contact finish-mating Gold
Contact color Gold
Insert material PPS

5, Why choose us

  1. large stock, short lead times, easy to buy.
  2. Lower your cost, cheap cable assembly offer, at least save your 30%-50% cost (100% compatible and work well)
  3. better quality at a reasonable price
  4. We can provide OEM/ODM service and cable assembly solution.
  5. Our factory has 9 years experience and strong and professional research and development capabilities.Advanced development and management, comprehensive R&D testing and highly automatic production line make our products high reliability and high performance.
  6. Our company have passed ISO9001, and also got CE,CB,and SGS certification

6, Choosing tips:

If you have purchased lemo connector or connector like this type and know the original model, please tell us. We will directly offer you our corresponding one.

If you don’t know much about the connector, please make choose according the following factors:

  1. the use of the environment, indoors or outdoors, waterproof or not;
  2. the panel hole size, to select the appropriate plug and socket of right dimension;
  3. the current-voltage and the realization of the function, to determine the cores;
  4. select the appropriate clamp diameter and sheath;
  5. according to the actual needs of different angles of the keys, to determine the keying (the standard keys as G).

7, Product picture:

SPRING ZGG 1B Push Pull Connector Analogues Of LEMOS EGG 1B 304 CLL Socket

Request a quote, sample, and datasheet. Inquiry now !


Product Tags:

circular power connector



circular plug connector

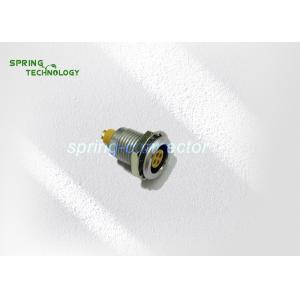

Wholesale SPRING ZGG 1B Push Pull Connector Analogues Of LEMOS EGG 1B 304 CLL Socket from china suppliers
