SPRING TGG 1K Metal Circular Connectors Substitute for Lemos FGG 1K Plug
SPRING TGG 1K 302/303/304/305/306/307/308/310 CLAC Straight plug can replace LEMOS FGG 1K 302/303/304/305/306/307/308/310 CLAC connector, and Standard S2 connector. Spring connector Compatible with existing push-pull connectors
1, Brief introduction:
The ruggedized design combined with precision manufacturing offers excellent durability, reliability and quality,SPRING offers high reliable connection solutions with metal or plastic housingSPRING TECHNOLOGY offer a full range of rugged self-latching push pull connectors used in a variety of demanding environments & industry applications,
2, Why choose our
1. better quality at a reasonable price
2. We can provide OEM/ODM service and cable assembly solution
3, large stock, short lead times, easy to buy.
4, Lower your cost, cheap cable assembly offer, at least save your 30%-50% cost (100% compatible and work well)
3, Main features:
- Safe push-pull locking system
- Rugged housing design for extremely harsh working environments
- 360° shield provides full EMC protection
- Multicore2-32,High density installation saves space.
- Positioning pin system, G is standard positioning pin for connector alignment
- Waterproof connection(IP68/IP66)

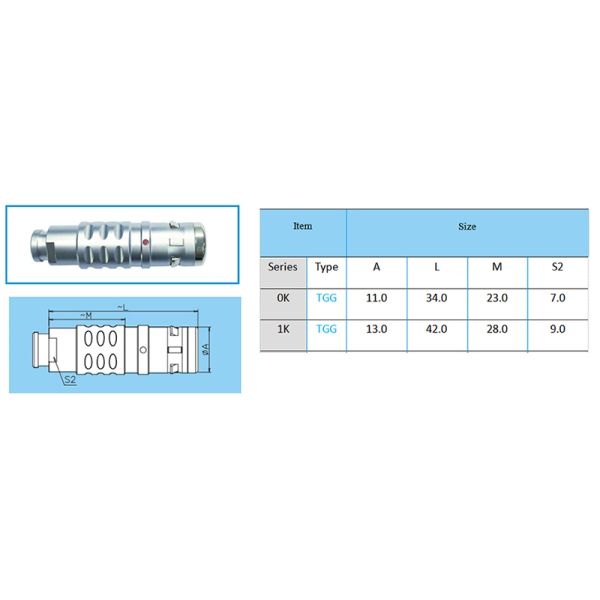

4, Construction and size:
TGG Straight plug, locating pin(G) or locating pin(A...F,L or R) cable clamp fixed and sheath type tail cap.
5, Technical specification:
| Pulling and inserting times | >5000. |
| Humidity | Maximum humidity up to 95% at a temperature of 60°, Water-proof |
| Temperature | -45°~+125° |
| Vibration | 10~20000HZ,15g |
| Mechanical shock | 100g·6ms |
| Salt spray corrosion test | >48h |
| Protection level | IP65~68 |
| Connector type | Plug, Male Pins |
| Number of positions | 2~10 pin |
| Termination | Solder |
| Fastening type | Push-pull |
| Orientation | G,(A...F, L&R) |
| Shell material | Brass |
| Shell finish | Chrome |
| Shell color | Silver |
| Contact material | Brass |
| Contact finish-mating | Gold |
| Contact color | Gold |
| Insert material | PPS |
| Cable opening | 1.3mm~8.5mm |
6, Choosing tips:
If you have purchased lemo connector or connector like this type and know the original model, please tell us. We will directly offer you our corresponding one.
If you don’t know much about the connector, please make choose according the following factors:
1 the use of the environment, indoors or outdoors, waterproof or not;
2 the panel hole size, to select the appropriate plug and socket of right dimension;
3 the current-voltage and the realization of the function, to determine the cores;
4 select the appropriate clamp diameter and sheath;
5 according to the actual needs of different angles of the keys, to determine the keying (the standard keys as G).
7, Product picture:
