Self - Locking Circular Push Pull Connectors 9 Pin SPRING TGG 0C Series

XI'AN SPRING TECHNOLOGY CO,.LTD
Contact Now

Self - Locking Circular Push Pull Connectors 9 Pin SPRING TGG 0C Series

  • 1
  • 2

Brand Name : SPRING

Model Number : TGG 0C

Certification : CE,CB

Place of Origin : CHINA

MOQ : 5

Price : Negotiation

Payment Terms : Western Union, T/T, MoneyGram

Supply Ability : 100000pcs/month

Delivery Time : 5 work day

Packaging Details : Bag

Shell material : Brass

Pin material : Brass

Termination : Solder, crimping,printed board

Protection level : IP68

Shell finish : Chrome

Insulator material : PPS

Cable size : 1.mm~5.0mm

Contact Now

SPRING TGG 0C Series Watertight Push-Pull Self-Locking Circular Connector

TGG.0C.306.CLAD52Z=TG plug, Positioning pin (G), with cable clamp, 0C series, multi-pin, 6-pins, brass chrome-plated housing, PPS insulator, solder male pin, D-type clamp for 5.2mm outer diameter cable.Cover cap with sheathed model

1, Brief introduction:

SPRING TECHNOLOGY offer a full range of rugged self-latching push pull connectors used in a variety of fiber optic,SPRING connector mates with all push/pull plug connectors with the same,

2, Why choose us

  1. We can provide OEM/ODM service and cable assembly solution.
  2. Lower your cost, cheap cable assembly offer, at least save your 30%-50% cost (100% compatible and work well)
  3. Our factory has 9 years experience and strong and professional research and development capabilities.Advanced development and management, comprehensive R&D testing and highly automatic production line make our products high reliability and high performance.
  4. Our company have passed ISO9001, and also got CE,CB,and SGS certification
  5. large stock, short lead times, easy to buy.
  6. it has excellent compatibility with many leading supplier

3, Description:

  • Soldering and printed circuit board cores
  • Waterproof gasket ring is made of high-temperature endurable silicone rubber
  • Fast push-pull self-locking system,
  • 2 pin-9 pin
  • Multiple positioning pin selection avoids intermixing between similar connectors.

4, Construction:

Self - Locking Circular Push Pull Connectors 9 Pin SPRING TGG 0C Series
5, Technical specification:
Pulling and inserting times >5000.
Humidity Maximum humidity up to 95% at a temperature of 60°, Water-proof
Temperature -45°~+125°
Vibration 10~20000HZ,15g
Mechanical shock 100g·6ms
Salt spray corrosion test >48h
Protection level IP68
Connector type Plug, Male Pins
Number of positions 1~9 pin
Termination Solder
Fastening type Push-pull
Orientation G,(A...F, L&R)
Shell material Brass,Aluminum alloy
Shell finish Chrome
Shell color Silver
Contact material Brass
Contact finish-mating Gold
Contact color Gold
Insert material PPS
Cable size 1.mm~5.0mm

6, Choosing tips:

If you have purchased this shell connector and know the original model, please tell us. We will directly offer you our corresponding one.

If you don’t know much about the connector, please make choose according the following factors:

  1. the use of the environment, indoors or outdoors, waterproof or not;
  2. the panel hole size, to select the appropriate plug and socket of right dimension;
  3. the current-voltage and the realization of the function, to determine the cores;
  4. select the appropriate clamp diameter and sheath;
  5. according to the actual needs of different angles of the keys, to determine the keying (the standard keys as G).

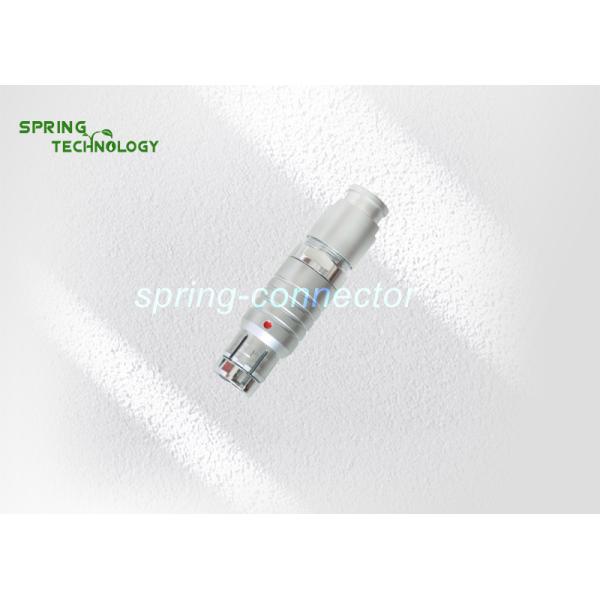

7, Product picture:

Self - Locking Circular Push Pull Connectors 9 Pin SPRING TGG 0C Series
