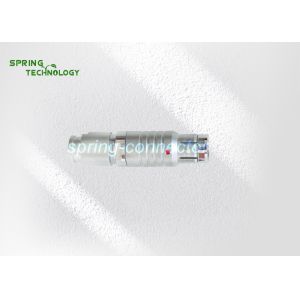

SPRING TGG.1C.303.CLAD52Z 1C Series 3 Pins Brass Chrome-Plated Connector
SPRING TECHNOLOGY offer a full range of rugged self-latching push pull connectors used in a variety of fiber optic,Spring connector Compatible with existing push-pull connectors.SPRING CONNECTOR widely used in the electrical connection of DC and AC, circuits in military equipment,
1, Brief introduction:
SPRING P Series Push-Pull Connectors are designed to offer a reliable connection for data, signal in Military application,SPRING connector mates with all push/pull plug connectors with the same,
2, Why choose us
- it has excellent compatibility with many leading supplier
- We can provide OEM/ODM service and cable assembly solution.
- Lower your cost, cheap cable assembly offer, at least save your 30%-50% cost (100% compatible and work well)
- Our factory has 9 years experience and strong and professional research and development capabilities.Advanced development and management, comprehensive R&D testing and highly automatic production line make our products high reliability and high performance.
- Our company have passed ISO9001, and also got CE,CB,and SGS certification
- large stock, short lead times, easy to buy.
3, Description:
- Safe split-pull self-latching system
- High-density installation saves space
- Locating pin system, G is a standard locating pin for connector alignment
- 360 degree shielding provides full EMC protection
- Multiple locating pin options to avoid intermixing between similar connectors
4, Construction:
5, Technical specification:
| Pulling and inserting times | >5000. |
| Humidity | Maximum humidity up to 95% at a temperature of 60°, Water-proof |
| Temperature | -45°~+125° |
| Vibration | 10~20000HZ,15g |
| Mechanical shock | 100g·6ms |
| Salt spray corrosion test | >48h |
| Protection level | IP68 |
| Connector type | Plug, Male Pins |
| Number of positions | 2~16 pin |
| Termination | Solder |
| Fastening type | Push-pull |
| Orientation | G,(A...F, L&R) |
| Shell material | Brass,Aluminum alloy |
| Shell finish | Chrome |
| Shell color | Silver |
| Contact material | Brass |
| Contact finish-mating | Gold |
| Contact color | Gold |
| Insert material | PPS |
| Cable size | 2.2mm~7.0mm |
6, Choosing tips:
If you have purchased this shell connector and know the original model, please tell us. We will directly offer you our corresponding one.
If you don’t know much about the connector, please make choose according the following factors:
- the use of the environment, indoors or outdoors, waterproof or not;
- the panel hole size, to select the appropriate plug and socket of right dimension;
- the current-voltage and the realization of the function, to determine the cores;
- select the appropriate clamp diameter and sheath;
- according to the actual needs of different angles of the keys, to determine the keying (the standard keys as G).

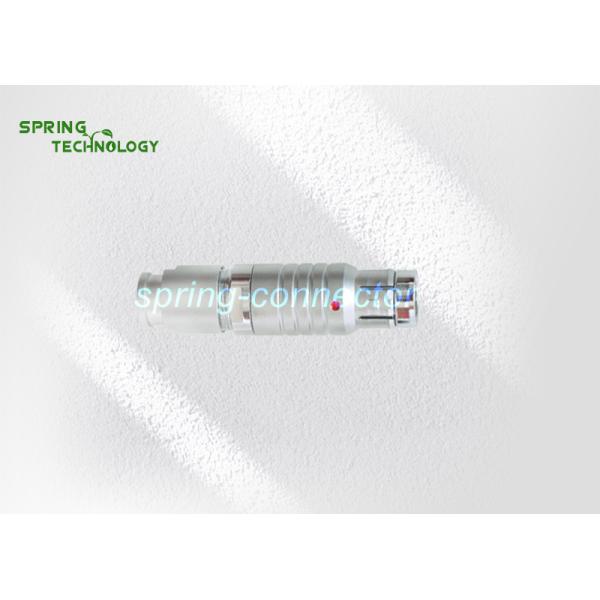

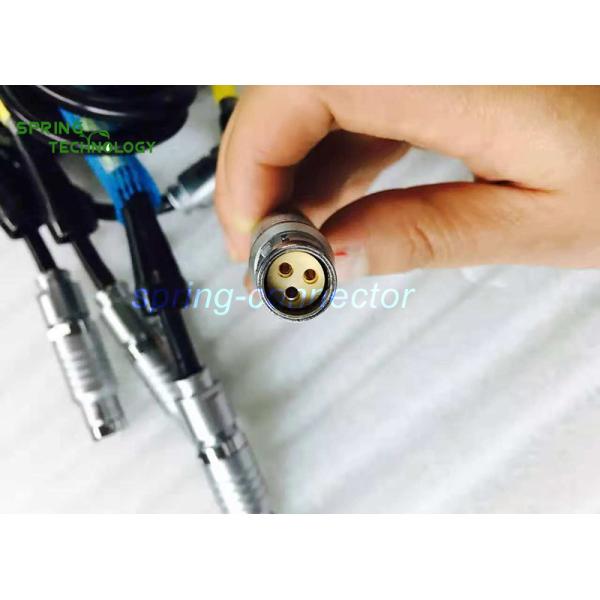

7, Product picture:
Request a quote, sample, and datasheet. Inquiry now
